當前位置：首頁>>Metal powder>>Die steel alloy powder
P 金屬粉末 RDOUCT
Steel is the basic organization of the martensitic matrix and the carbide substrate distribution and intermetallic compounds such as composition, performance is by the mold material composition and heat treatment of the organization. Steel is used to produce cold stamping dies, hot forging die steel, die-casting die mold.
In the aerospace and defense, automotive, medical and other industries on the use of a huge space for development. Can realize the structure optimization in the production, saving material and saving energy.

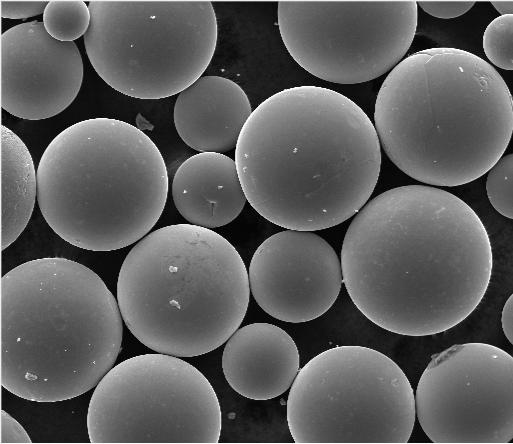

模具鋼粉末電鏡下形貌
牌號 | 化學成分 | 產品標準 | 粒度分布 | ||
主元素 | 雜質元素 | 國標 | 美標 | ||
GP1 (17-4PH) | Cr：15.00-17.50 Cu：3.00-5.00 Ni：3.00-5.00 Mn：≤1.0 Fe：Bal | Nb：0.15-0.45 Si：≤1.0 Mo：≤0.50 C：≤0.07 O：≤0.05 | A708 | 15-45μm 15-53μm 53-120μm 53-150μm | |
PH1 (15-5PH) | Cr：14-15.5 N：3.5-5.5 Cu：2.5-4.5 Nb：0.15-0.45 Fe：Bal | Mn：≤1.00 Si：≤1.00 C：≤0.07 P：≤0.04 S：≤0.03 O：≤0.05 | 15-45μm 15-53μm 53-120μm 53-150μm | ||
2Cr13 | Cr：12-14 C：0.16-0.25 Mn：≤1 N：≤0.6 Fe：Bal | Si：≤1 P：≤ 0.035 S：≤ 0.03 O：≤0.05 | GB/T 3620.1-2007 | 15-45μm 15-53μm 53-120μm 53-150μm | |
18Ni300 (Ms1) | Ni：17.0-19.0 Co：8.5-9.5 Mo：4.5-5.2 Ti：0.6-0.8 Al：0.05-0.15 Cr≤ 0.3 Fe：Bal | Mn：≤0.1 Si：≤0.1 C：≤0.03 P：≤0.01 S：≤0.01 O：≤0.05 | F1527 | 15-45μm 15-53μm 53-120μm 53-150μm | |
H13 | Cr：4.75-5.50 Mo：1.10-1.75 V：0.80-1.20 Fe：Bal |
C：0.32-0.45 Si：0.8-1.20 Mn：0.20-0.50 P：≤ 0.030 S：≤ 0.03 O：≤0.05 | GB/T 1299-2014 | 15-45μm 15-53μm 53-120μm 53-150μm | |
1.2709 | Cr：≤ 0.25 Mo：4.5-5.2 Ni：17.0-19.0 Ti：0.8-1.2 Co：8.5-10 Fe：Bal | C：≤ 0.03 Si：≤ 0.41 Mn：≤ 0.15 P：≤ 0.01 S：≤ 0.01 O：≤0.05 | 15-45μm 15-53μm 53-120μm 53-150μm | ||
